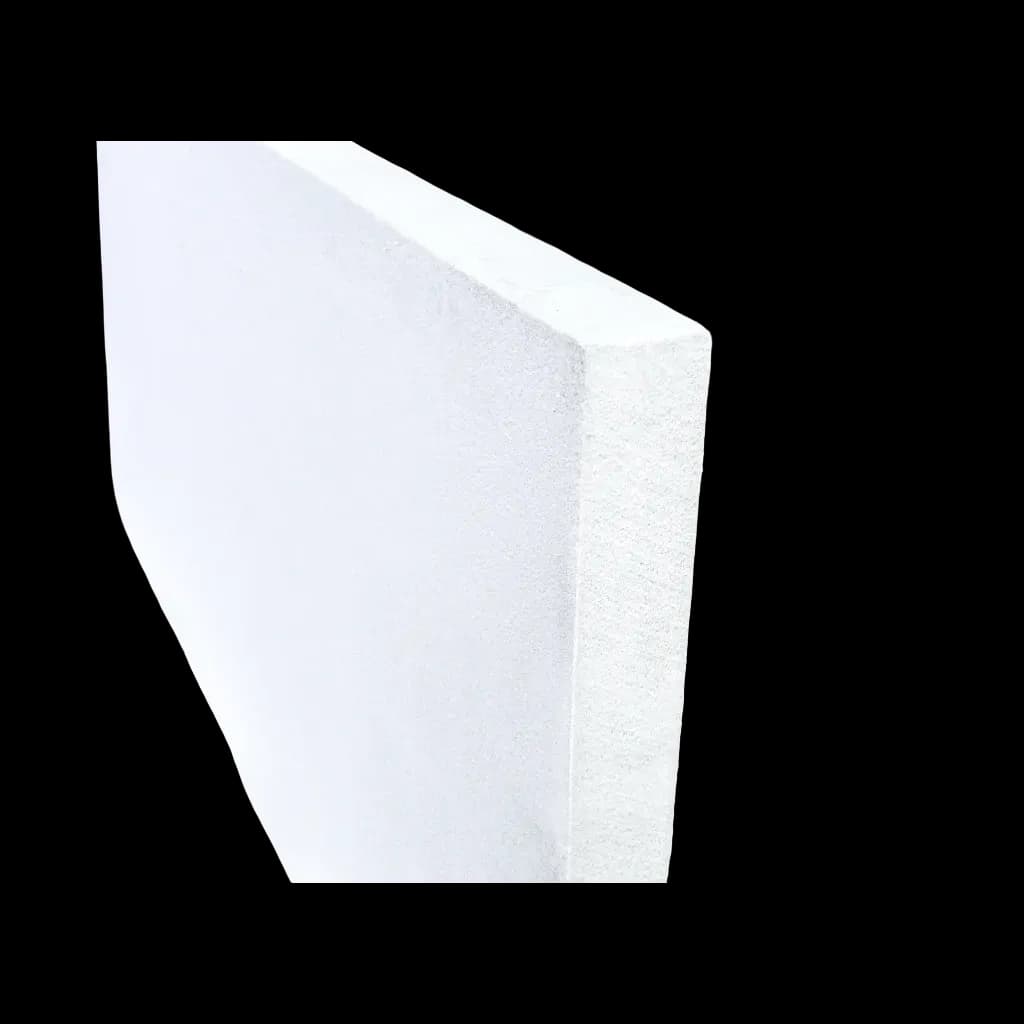

A white Termalboard with a smooth face and visible fibrous texture on the side.

Termalboard

Problem solved

Reduces the risk of failures due to thermal shock; Minimizes energy losses due to inadequate insulation; Prevents deformation at high temperatures.

Main applications

Burner blocks; Furnace internals; Furnace partitions and dividers; Boiler ducts; Heat shields; Chimney linings.

Technical features

Molded ceramic fiber boards with or without organic binders, pressed at high temperature, lightweight, machinable, asbestos-free, with low thermal conductivity, low shrinkage, resistant to thermal shocks and aggressive chemical atmospheres, ideal for insulation and thermal protection in severe industrial applications.

Temperature:up to 1260 °C
Density:300 - 400 kg/m³
Thermal conductivity:≤ 0.13 W/m*K
Dimensions:Ø 50 mm (Type H)

Termalboard Board is a ceramic fiber insulation board developed for linings, internal barriers and components in furnaces, boilers, burners and chimneys. Available in HO and HI versions, it combines low thermal conductivity, low heat storage, thermal shock resistance and low in-service shrinkage.
