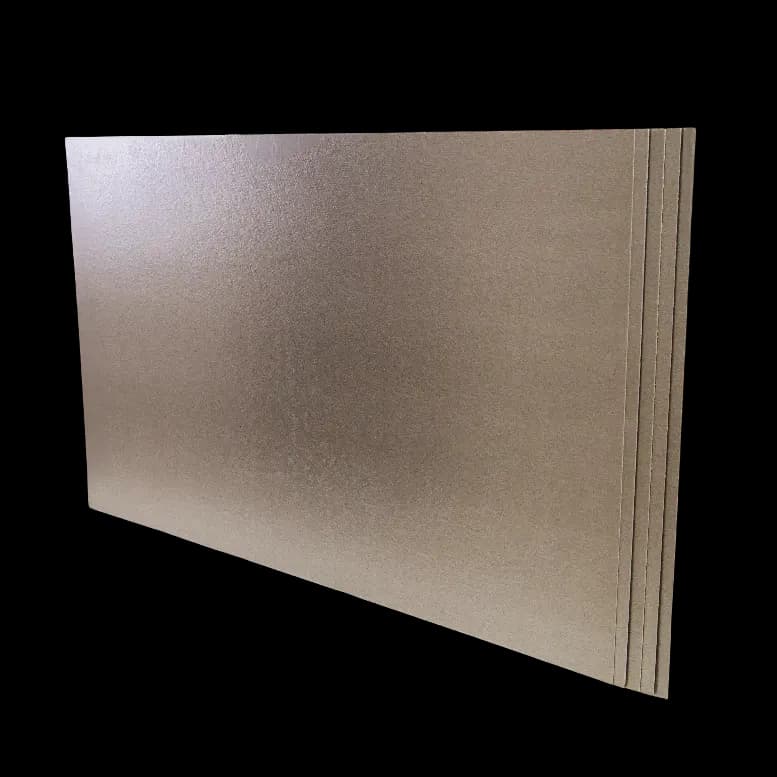

A stack of beige rectangular Rigimica boards with a smooth surface and a slight sheen.

Rigimica Board

Problem solved

Reduces the risk of dielectric strength breakdown; Prevents degradation of insulating materials in high-temperature environments; Protects electrical systems exposed to radiation or high-frequency waves.

Main applications

Support for various types of electric resistances; Water heaters; Thermoelectric insulation for irons, dryers, heaters, dehumidifiers, microwave ovens.

Technical features

Thermoelectric insulating board produced with mica paper, muscovite or phlogopite, uncalcined, bonded with epoxy or silicone resins.

Temperature:up to 800 °C
Density:2200 kg/m³
Thermal conductivity:0.23 W/m*K
Dimensions:up to 600 (w) x up to 1000 (l) x up to 8 (t) mm

Rigimica Board is a thermoelectric insulation material produced with muscovite or phlogopite mica paper, combined with epoxy or silicone resins under high pressure and temperature. Recommended for supporting electrical resistances and thermoelectric insulation in equipment requiring thermal stability, dielectric strength, mechanical strength and machinability.
