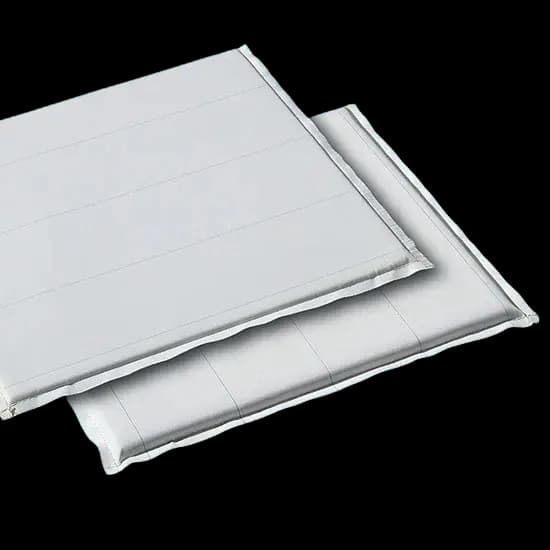

Microtherm® Panel

Microtherm® Panel

Problem solved

Significantly reduces heat losses in high-temperature industrial applications; Enables higher insulation efficiency with reduced thicknesses.

Main applications

Back-up insulation in industrial equipment; Aluminum industry, including launders and furnaces; Glass and ceramics industries; Annealing and galvanizing lines; Petrochemical industry; Cracking furnaces; Hydrogen reformers.

Technical features

High-temperature microporous insulation panel consisting of an opacified, filament-reinforced pyrogenic silica core in the 1000R and 1000R HY versions, while the 1200 version features an alumina-based formulation. E-glass fabric outer covering.

Temperature:Up to 1200 ºC
Density:240 - 400 kg/m³
Thermal conductivity:0.023 - 0.044 W/m*K
Dimensions:Customizable. Thickness from 3 to 50 mm

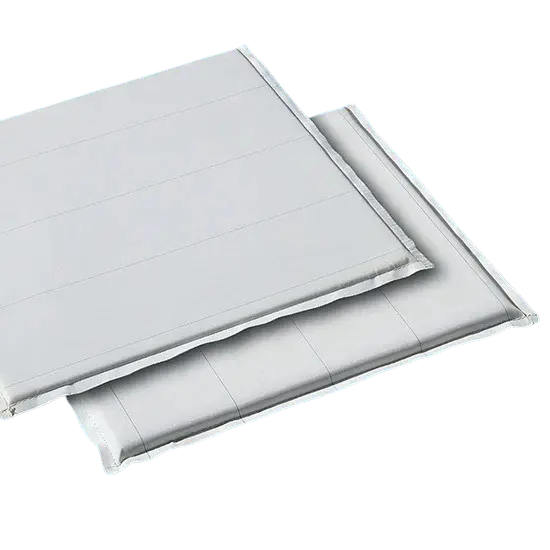

MICROTHERM® PANEL is a high-temperature microporous insulation panel designed for applications requiring low thermal conductivity, reduced heat losses or surface temperature control where space is limited. The panels are custom-made and feature a glass fabric outer covering, which facilitates handling and keeps the material clean during installation. The 1000R and 1000R HY versions have a core of opacified, filament-reinforced pyrogenic silica, while the 1200 version features an alumina-based formulation. The 1000R HY version has a hydrophobic core treatment, recommended for applications where contact with liquid water or condensation may occur.
